Telescope-Accessories-Pegasus Astro FocusCube Zero with Bracket for Celestron Classic, Edge, and RASA 14″ Telescopes

Automatic Focusing For Your SCT and RASA with the FocusCube Zero!

The changes in temperatures throughout imaging sessions cause the focal point in your telescope to change its position, requiring periodic refocusing. The addition of a motorized focuser does the hard work for you! Software analyzes the field of view and communicates with the motors within the electronic focuser to bring your telescope into precise focus. Thanks to the ingenuity from Pegasus Astro, this FocusCube Zero brings automated focus to users of Schmidt–Cassegrains (SCT) and Rowe-Ackermann Schmidt Astrographs (RASA)! Installation is simple, and set how often you’d like to refocus your optics for the sharpest possible photos.

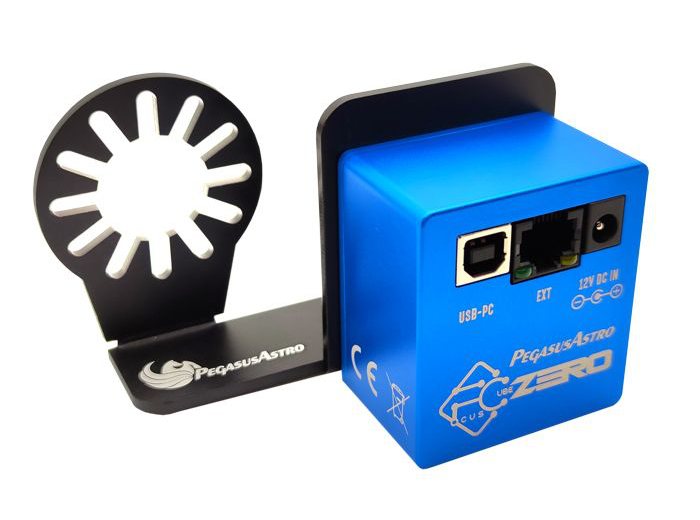

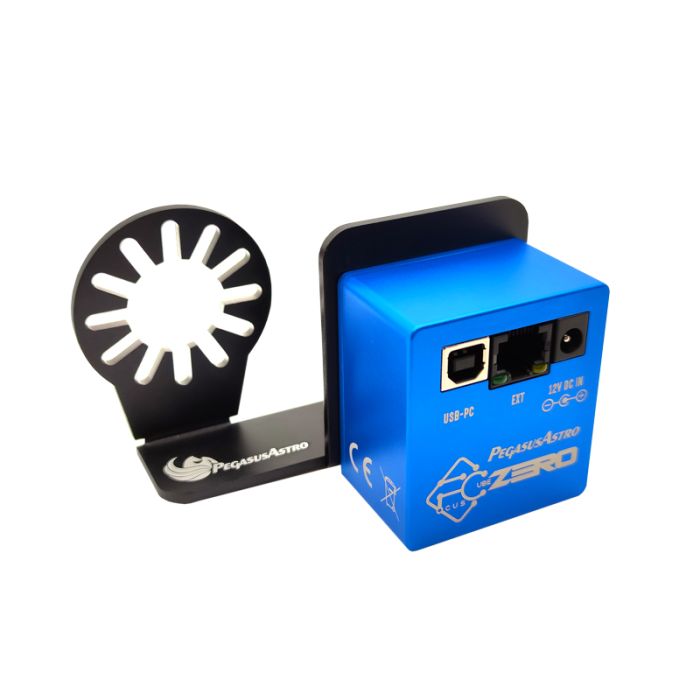

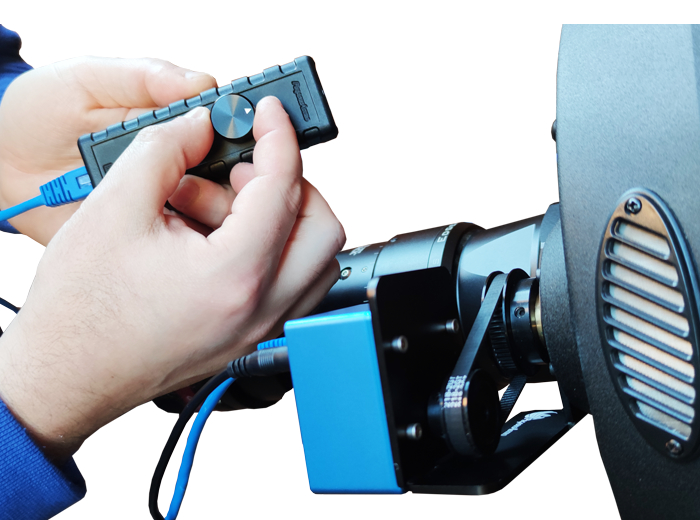

The FocusCube Zero has a built-in bracket specifically designed for Celestron SCT and RASA telescopes. Quick focusing and perfect V-Curves are a result of the onboard bipolar stepper motor, the absence of a reduction gearbox, and zero backlash. Control this focuser with your favorite image capture software through ASCOM and INDI drivers, or utilize the Pegasus Astro Unity Platform. Included within this package is a temperature sensor which works in conjunction with your software to determine the optimal times to refocus your optics. Wanting a more manual approach in controlling your focuser? Attach the FocusCube Hand Controller (not included) for operation without the need for software. Important Note: Not suitable for use with all available controllers including the Pegasus Dual Motor Focus Controller. The RJ45 port located on the back is for the hand controller or included temperature sensor probe only. Never connect the RJ45 port to the Ultimate Powerbox RJ45 Stepper Output.

Simple & Effortless Installation

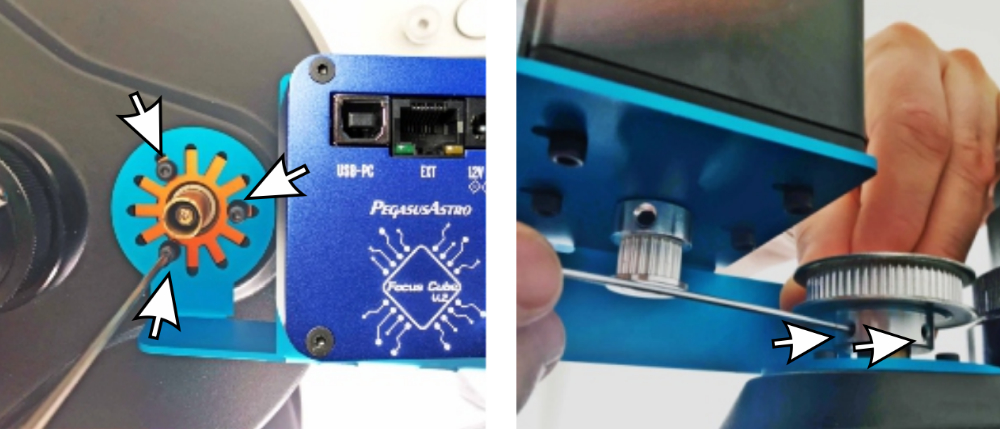

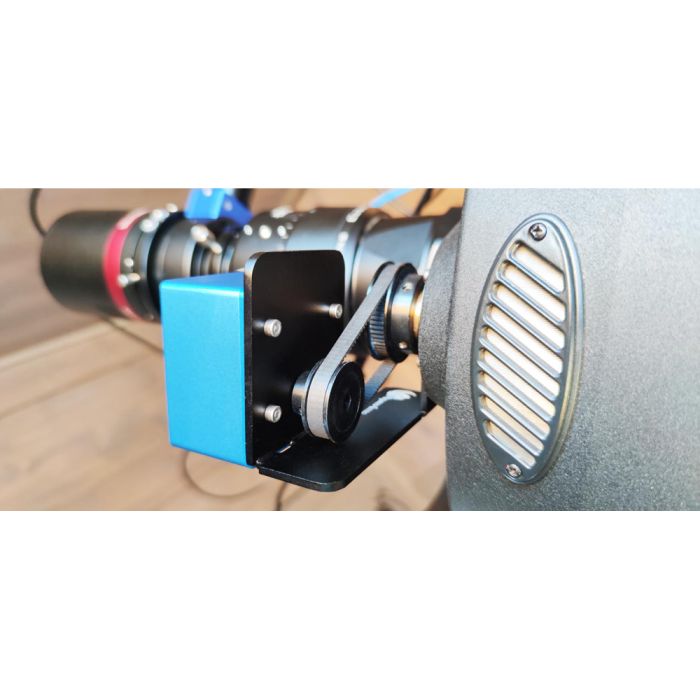

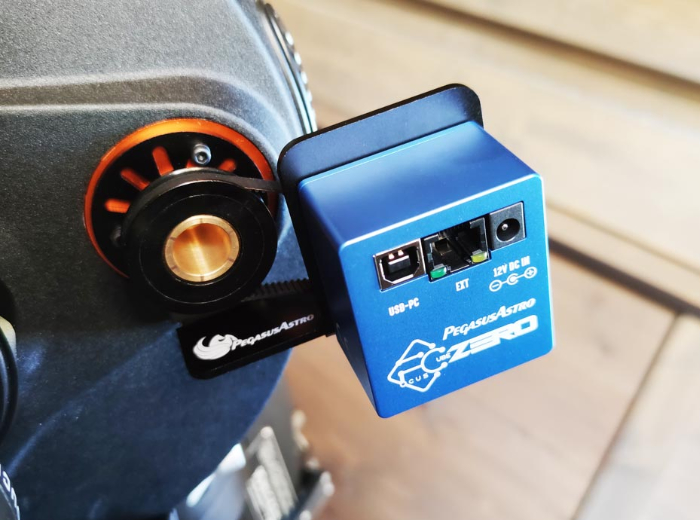

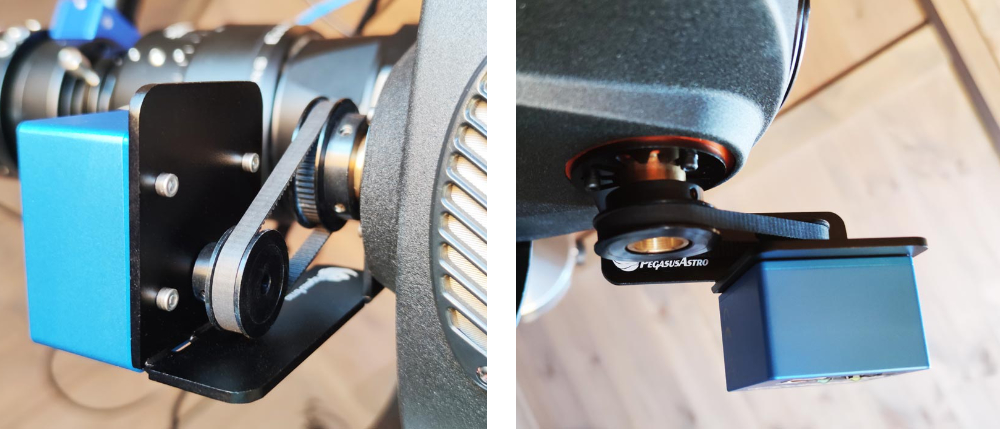

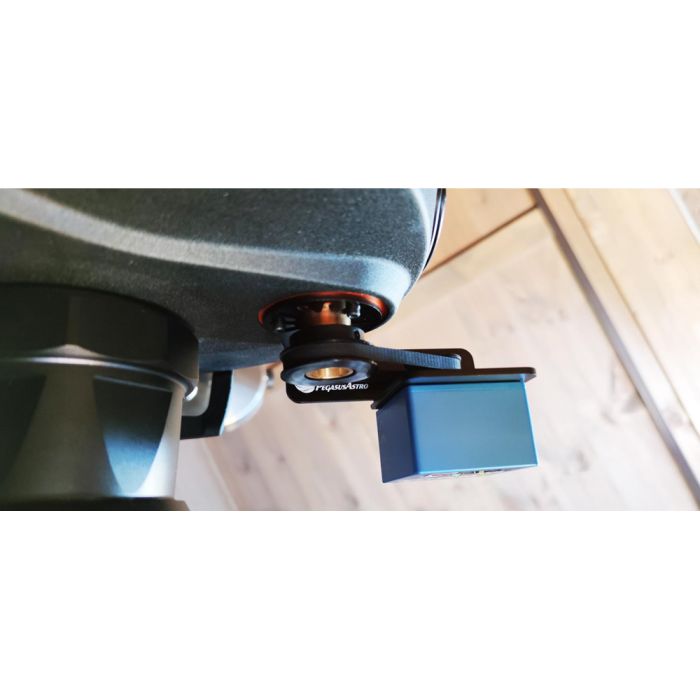

The majority of electronic focusers don’t come standard with compatibility to Schmidt–Cassegrain telescopes and require the purchase of external adapters. With this in mind, Pegasus Astro has designed their FocusCube Zero specifically for SCTs! This focuser uses an easy-to-install pulley system to rotate the focusing shaft and brings your optics into focus. Simply attach the FocusCube Zero around your focusing shaft, connect one of the pulleys to the focusing shaft, then join the two pulleys with the included belt. This FocusCube Zero features a bore diameter of 22mm and has been designed to fit Celestron Classic, Edge, and RASA 14″ telescopes.

Extensive Software Control

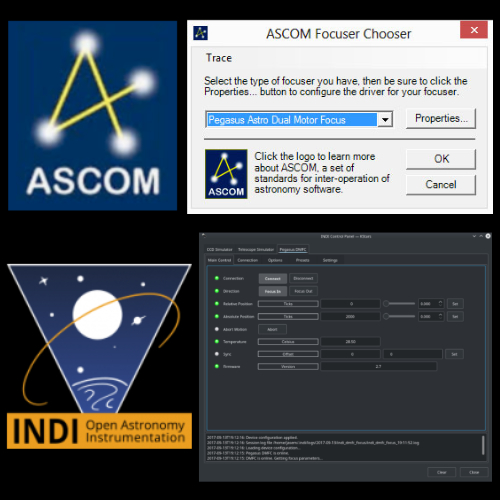

Supporting INDI and ASCOM platforms, utilize any image capture software that incorporates these drivers such as NINA, Sequence Generator Pro, and many more! You can also control this focuser through the Pegasus Astro Unity Platform, an all-in-one application designed to operate all current and future Pegasus Astro products. With its support for firmware upgrades, constant customer feedback to Pegasus Astro aids in keeping this focuser future-proof.

Please Note: Pegasus Astro states that their Unity software suite currently does not work with Windows machines equipped with the Snapdragon line of CPUs.
