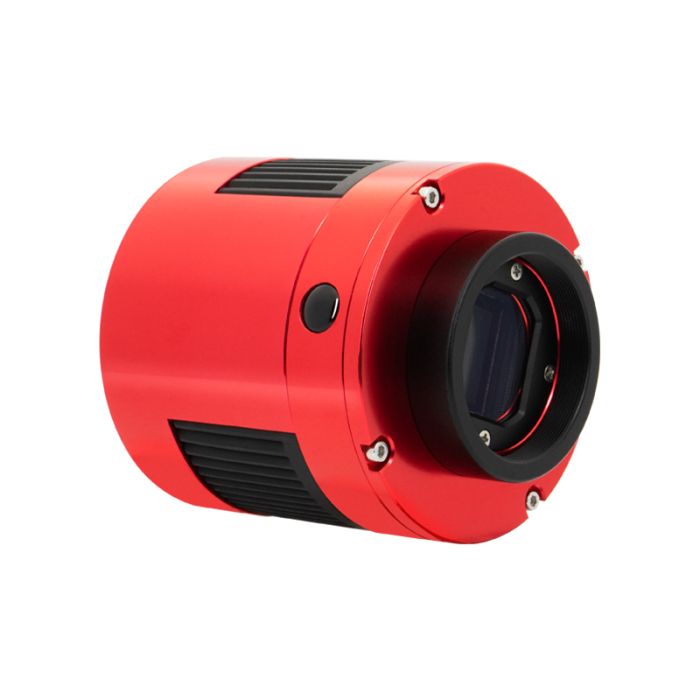

High Resolution and Incredible Sensitivity: The ASI294MC Pro Cooled Color Camera from ZWO!
The ZWO ASI294MC Pro Cooled Color Astronomy Camera was designed to enhance your astrophotography through its endless outstanding features. Whether that be through its high resolution, remarkable full well capacity, or incredible signal to noise ratio, the ASI294MC Pro delivers top-tier astrophotography performance sure to impress!
​
Noting the 4/3 aspect ratio of the integrated 11.7-megapixel Sony IMX294CJK sensor, produce images in true 4k resolution with vivid color and incredible detail. Optimizing its astrophotography performance is the inclusion of the large full well capacity of 63,700e and back illumination of the sensor, greatly increasing the signal to noise ratio within your frames. Reduce noise even more by cooling your camera to 35 degrees Celsius below ambient temperature with the integrated two stage TEC cooling! Transfer every frame through the reliable 5Gb bandwidth USB3.0 port, and ensure every bit of data is safe and secure with the onboard 256MB DDR3 memory buffer. Achieve the perfect back focus right from the get go, as every adapter needed is included within this package, allowing you to start imaging in no time! With these incredible aspects, see why the ZWO ASI294MC Pro is one of the highest regarded cameras for astrophotography!
​
​
​
A High Performance, Professional Camera for Astrophotography
Let’s Dig into the Data!
What sets one astrophotography camera apart from another? How is performance measured? Camera and sensor manufacturers provide certain interconnected specifications that give insight into the performance of a camera. These measurements include quantum efficiency, read noise, full well depth, gain, and dynamic range. While the graphs provided by the manufacturer may be confusing or intimidating, don’t fret! Our team has put together a breakdown of these complicated topics to help you make sense of them. Take a look at the article here: Understanding ZWO Camera Charts and Graphs, and feel more confident making the right choice for your astrophotography needs!
​
​

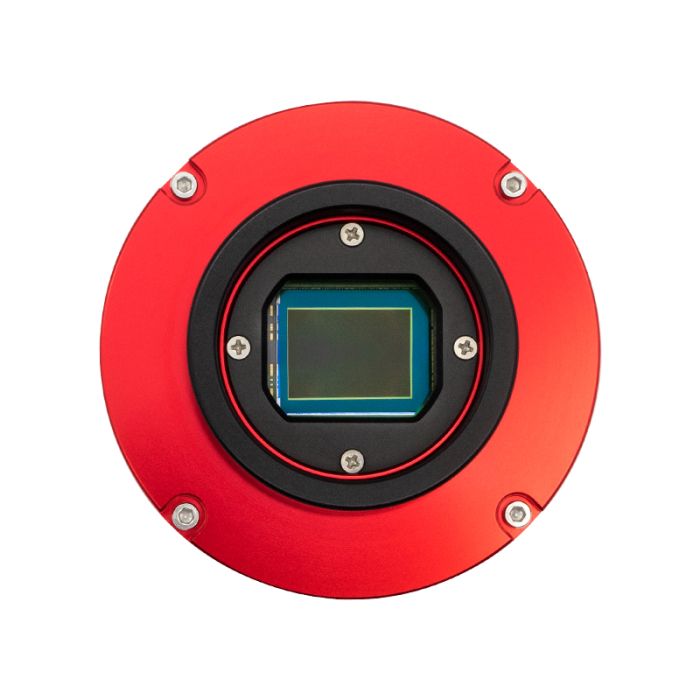

High Resolution Sony IMX294CJK Sensor
The onboard 11.7-megapixel Sony IMX294CJK sensor allows the ZWO ASI294MC Pro to utilize a 4/3 aspect ratio format, providing the necessary amount of pixels needed for true 4k output at 120fps. The back illumination of the Sony IMX294CJK allows for incredible sensitivity to the photons collected, resulting in a high quantum efficiency of 75% and low readout noise of 1.2e, improving upon the signal to noise ratio (SNR) immensely! This large sensor offers a high resolution of 4144×2822, and with its remarkable full well capacity of 63700e, bright stars are able to be imaged without saturating. The ASI294MC Pro also features a 14bit ADC, a high dynamic range of 13 stops, and a pixel size of 4.63um, resulting in exceptionally detailed and clear images!
Electronic Highlights
By cooling your camera, a reduction in sensor noise along with reduced dark current results in sharper, cleaner images. The ASI294MC Pro achieves this through two stage TEC cooling, lowering the temperature of your sensor to 35 degrees Celsius below ambient temperature, allowing for long exposures produced with incredibly low noise. Guaranteeing reliability of data transmission, the onboard 256MB DDR3 memory buffer ensures the data you capture is preserved and safely relayed.
​
Power and Ports
All ZWO cooled cameras require an external 11-14v power supply to work. When it comes to powering your ZWO ASI294MC Pro camera, we suggest the Apertura Universal 5 Amp AC Adapter. Multiple ports are included on the body of the ASI294MC Pro camera. A USB3.0 port allows for incredibly fast data transmission to your computer, as its 5Gb bandwidth gives the ASI294MC the ability to run at 16FPS in 14-bit mode or 19FPS in 12bit high-speed mode, at full 11.7-megapixel resolution. Aiding in cable management, two additional USB2.0 ports offer the ability to connect extra devices, such as an electronic focuser! Included with the ASI294MC Pro is one USB3.0 cable and two USB2.0 cables, readying you for a night of imaging.
Everything Needed for Proper Backfocus Spacing
Understanding the daunting task of finding the correct backfocus for your camera, ZWO has included everything you need to find the proper backfocus to get you out and imaging in no time! The included spacers allow you to reach the standard 55mm of backfocus right from the get go, ensuring your camera is the proper distance away from your imaging system. The spacers and adapters provided make it easy to seamlessly adjust and swap out other ZWO accessories such as the OAG or Filter Drawer. Take a look at the images provided for more insight into how to connect your camera to your telescope!
​
