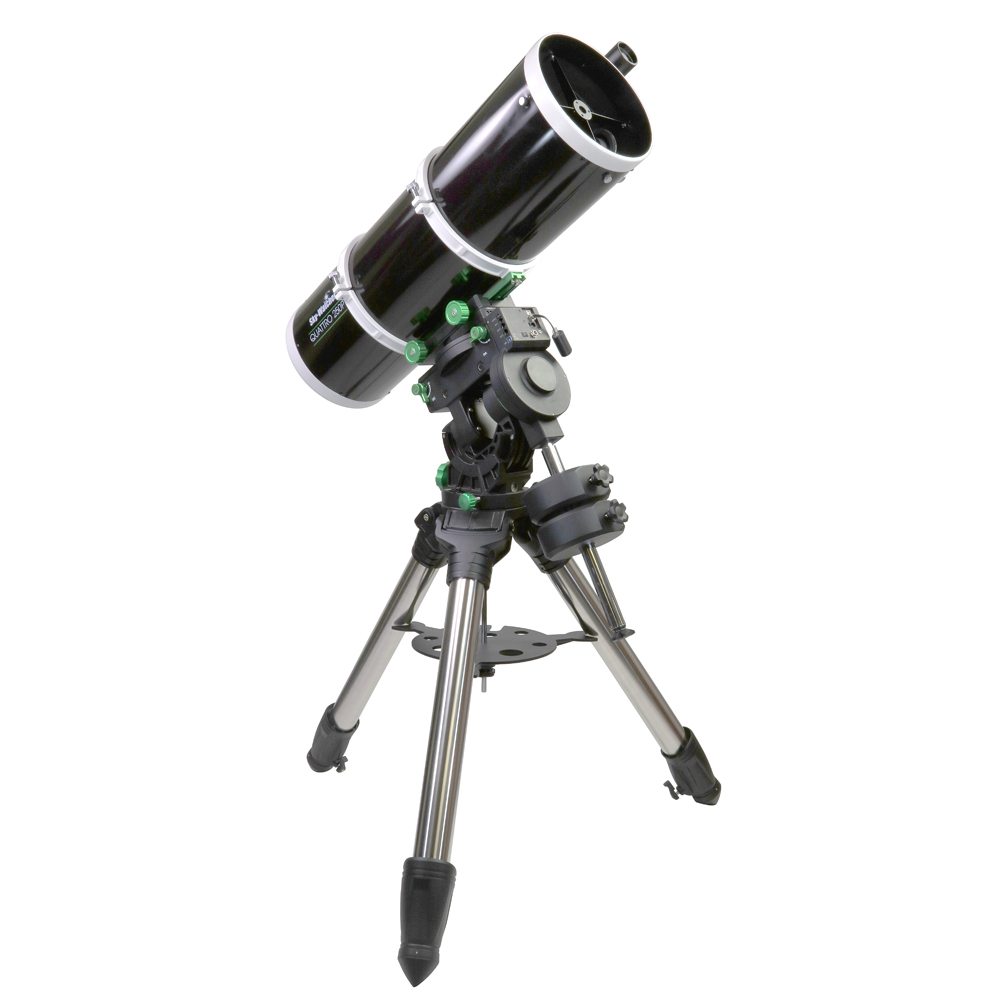

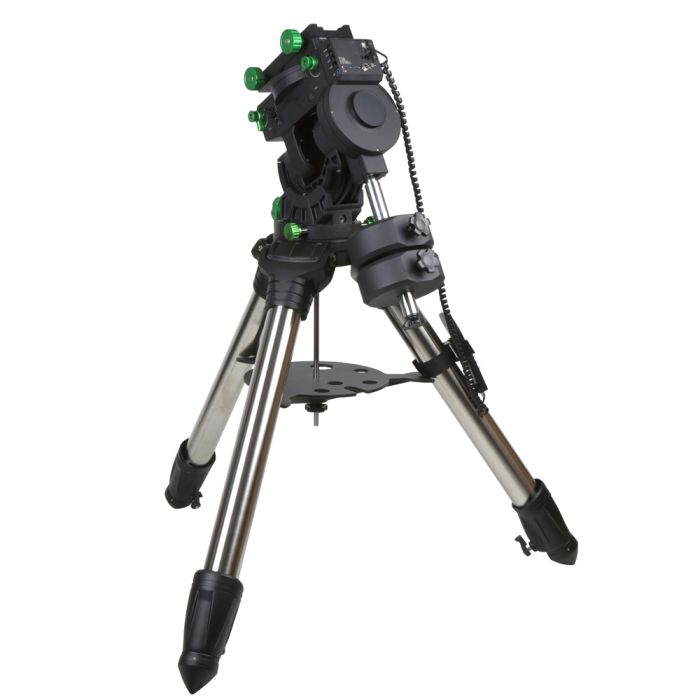

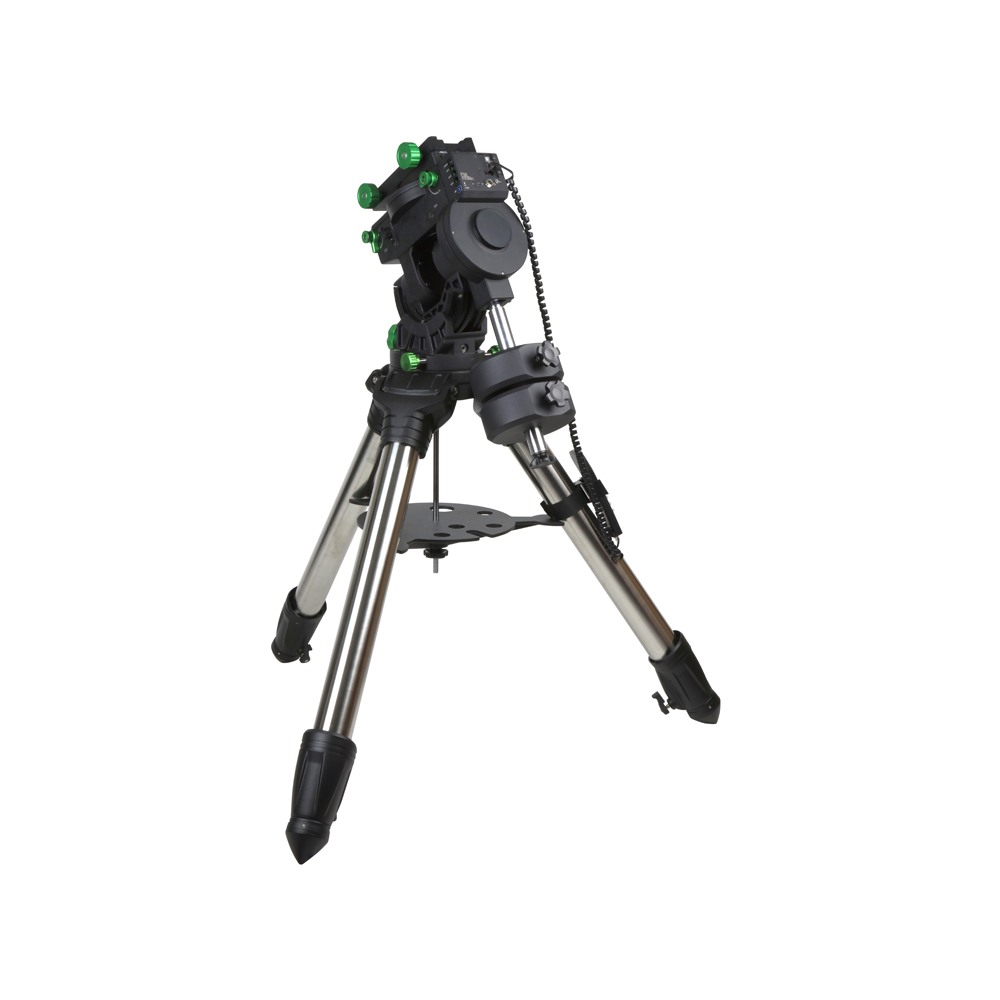

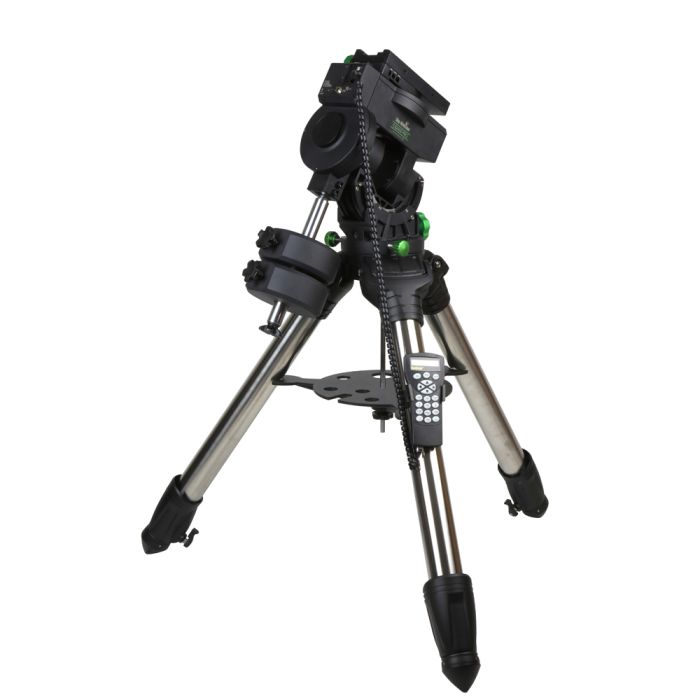

Telescope-Equatorial Mounts-Sky-Watcher CQ350 Pro Mount with Heavy-Duty Field Tripod

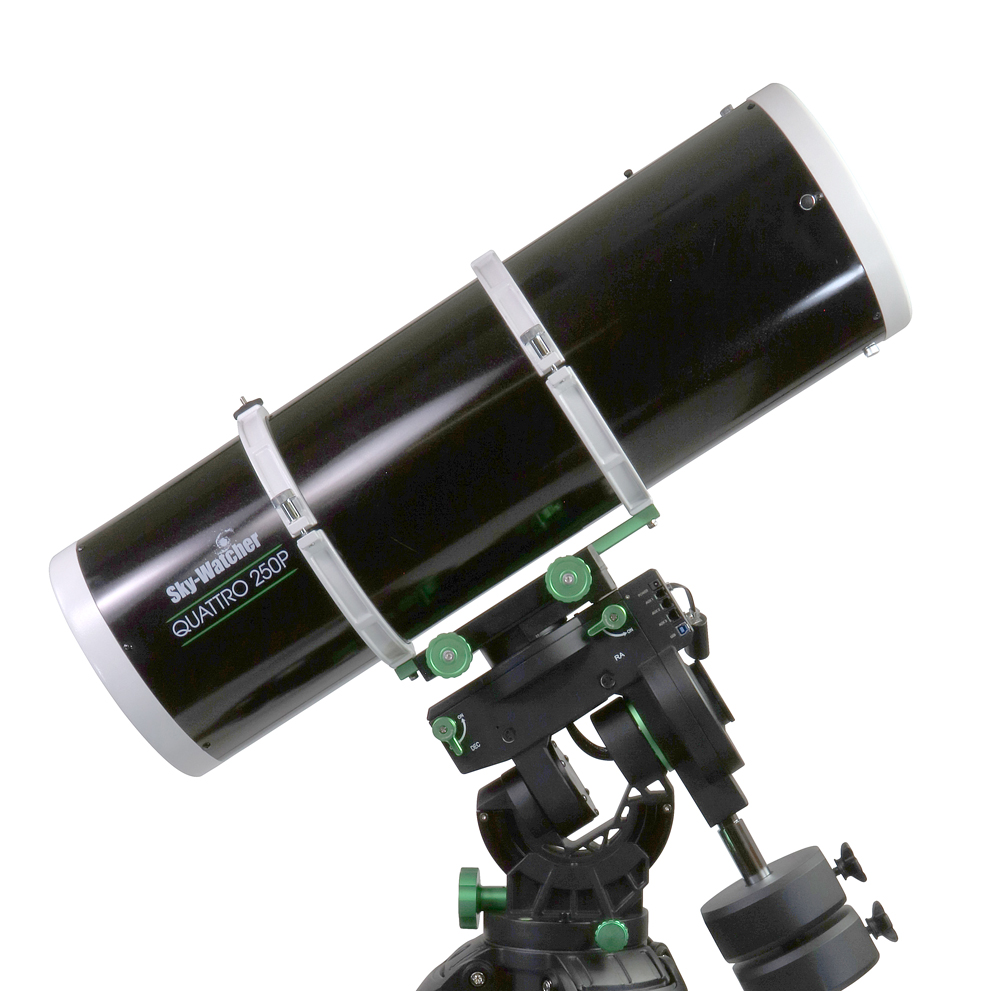

77 lb. Payload Capacity and Mount Construction
This equatorial mount from Sky-Watcher boasts an impressive 77 lb. (35 kg) payload capacity. The CQ350 Pro all-metal precision internal construction makes the mount body strong and stable, allowing the mount to carry even the largest of OTAs from Sky-Watcher and other manufacturers. The 33 lb. mount head body may be observation-class, but it is light enough to take into the field. It also includes large adjustment knobs, allowing for easy mount position manipulation, even with gloves, so you can get your OTA and accessories exactly where you want them. Also included on the body of the mount is a D-/V-style dovetail mounting platform and a place for an optional polar scope (not included).

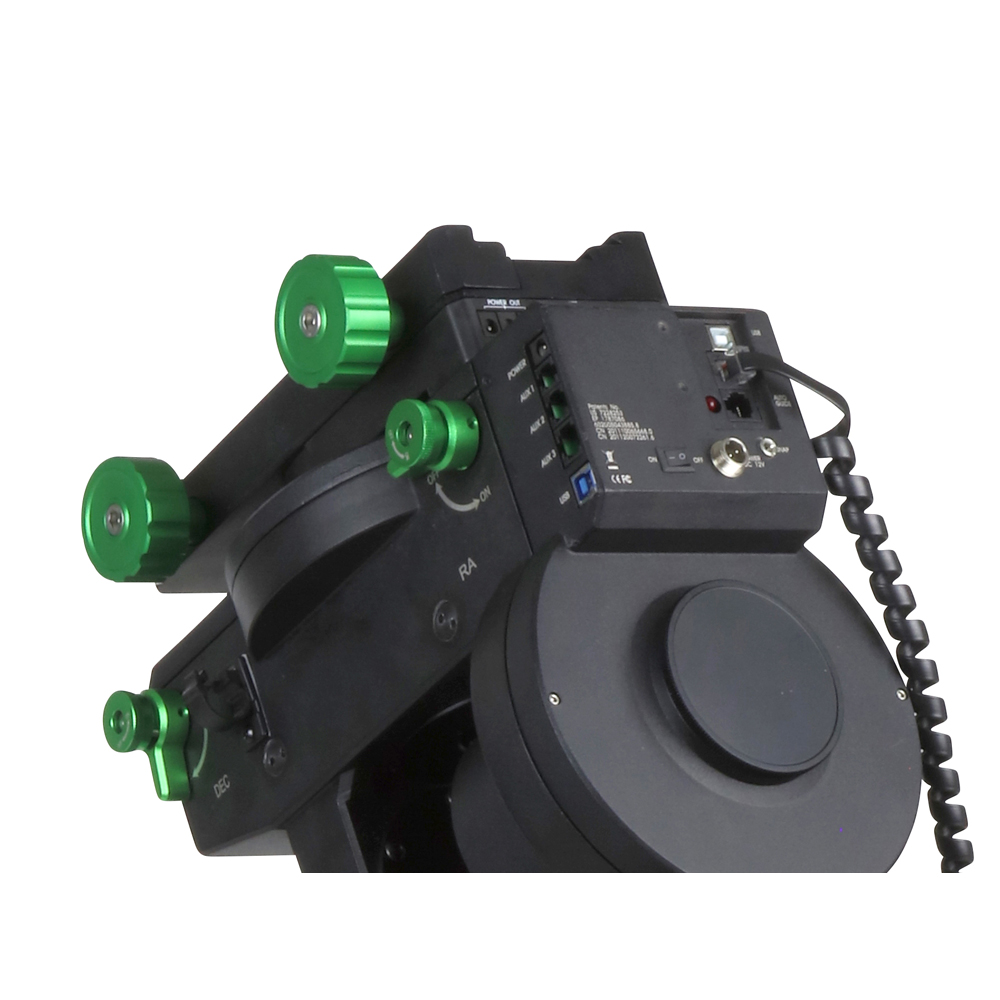

Versatile Connection Options
Get ready for a versatile mount connection hub! The Sky-Watcher CQ350 Pro equatorial mount comes with a plethora of connection options in its complete integrated cable management system. The included ports are as follows: four USB3.0 Out ports which sit adjacent to three 2.1 mm central positive Out ports, three AUX Out ports, three Aux In ports, a PC connect USB-to-serial port, a USB3.0 Type B In port, a SNAP port, one power input port, a hand controller port, an autoguider port, and a 12V DC power aircraft cable port for secure power connection. Also included is a V5 SynScan hand controller for manual GoTo control. This controller contains a 42,000+ object database.

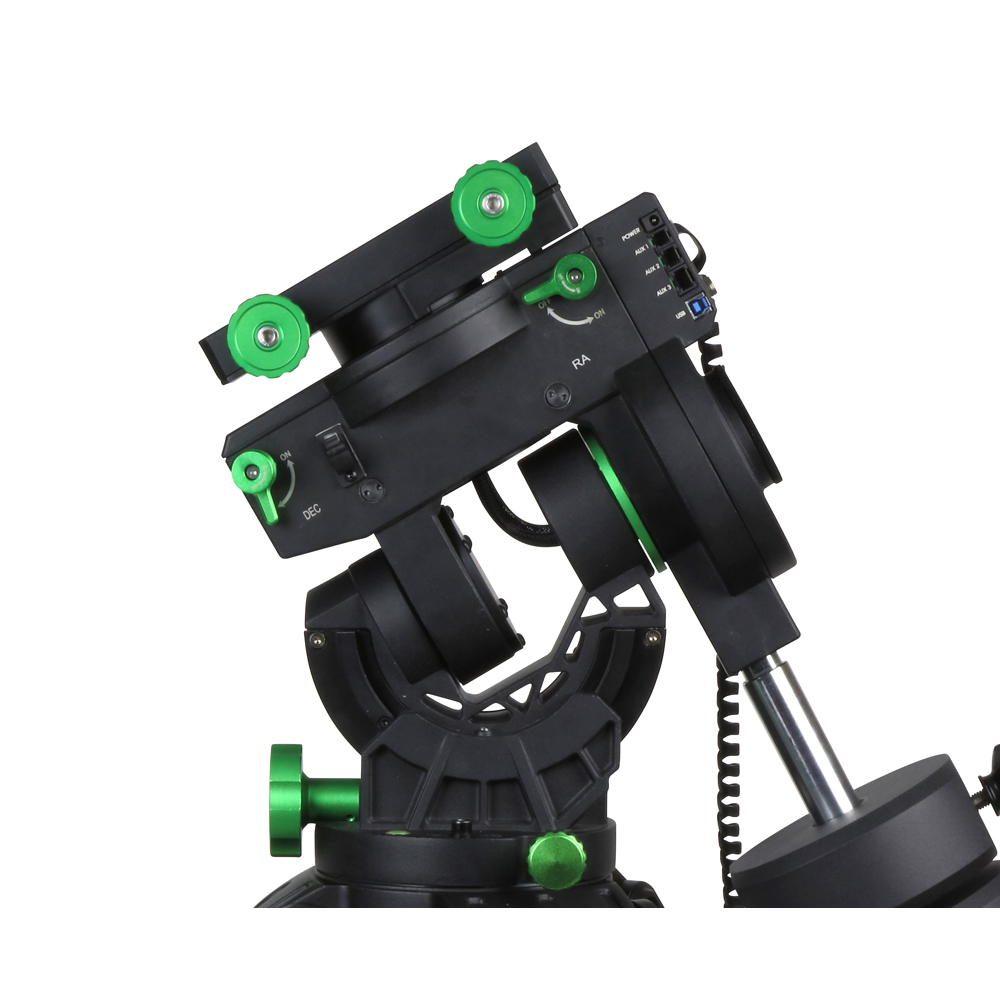

Drive System
Featured in the CQ350 Pro mount is a high-precision, 0.9° hybrid stepper motor, spring-loaded worm gears, synchronous wheel and belt drive modes, and locking clutches for the RA and DEC axes. The belt drive provides minimal backlash and significantly reduces the periodic error while remaining very quiet. This function provides smoother, more accurate tracking, so you can get crisp celestial images.

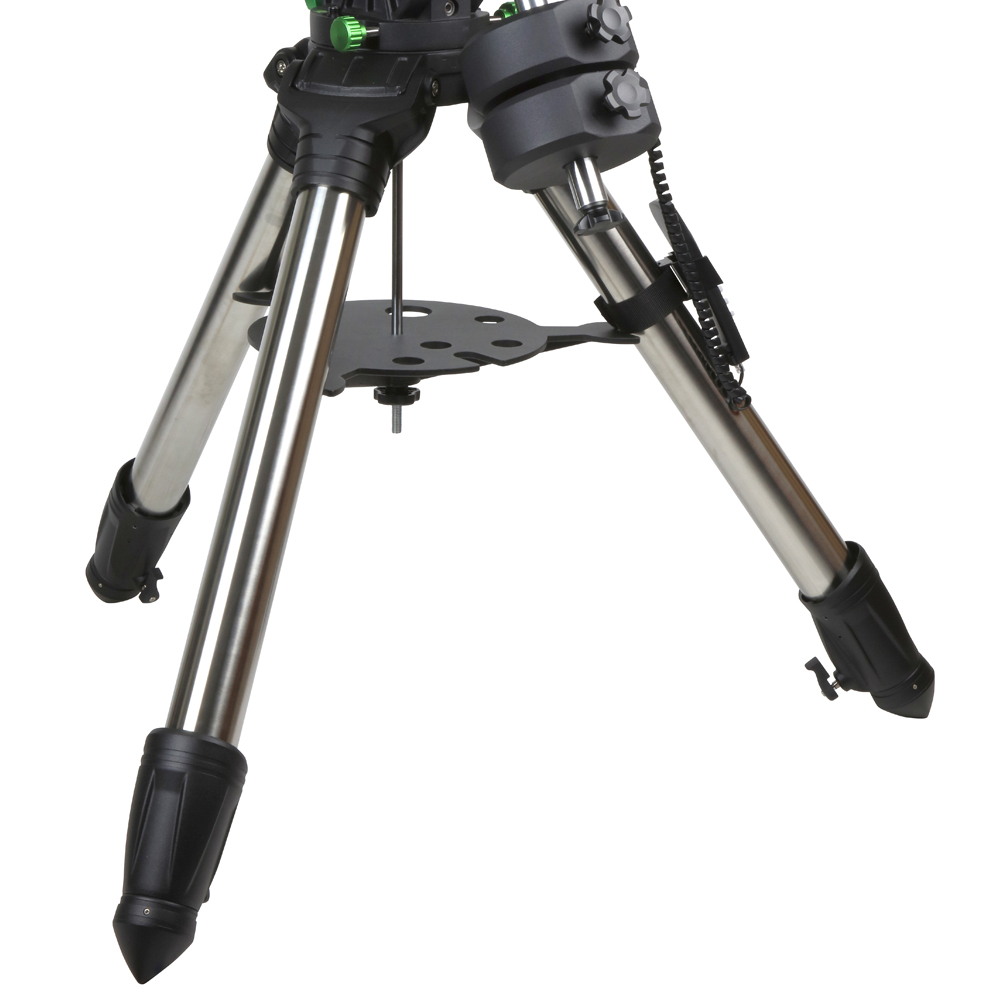

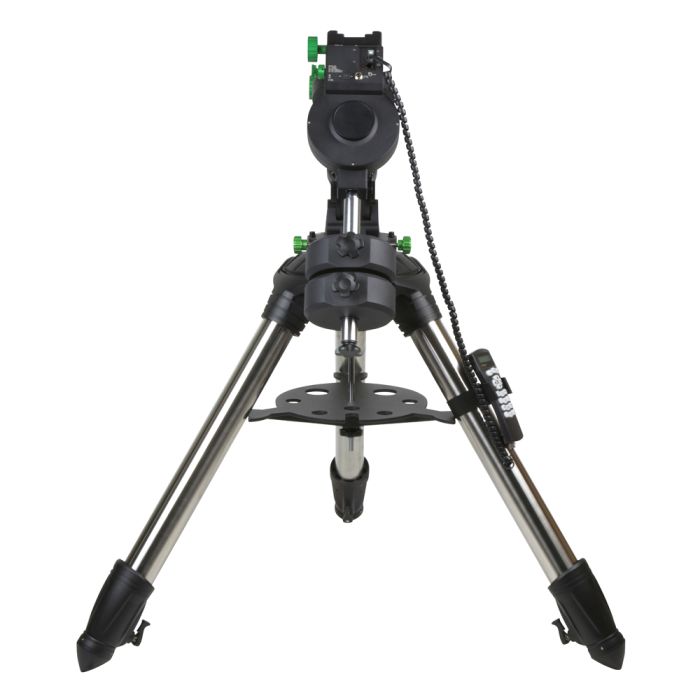

Heavy-Duty Tripod
Included with the CQ350 Pro EQ mount head is a heavy-duty steel tripod that will provide a rock-solid performance. The steel tripod legs measure 2.75″ (70 mm) in diameter, which is great for stability. Weighing in at 34.5 lb., this tripod is definitely hefty enough to support your mount and the user-supplied OTA and accessories, and you can be sure your equipment is safe. The extended and retracted height of the tripod is 30.5″ / 42.5″, and the spread, when retracted/extended, comes in at 39″ x 56″. This mount is also compatible with the EQ8-R tripod.

Perfect for Backyard or Remote Observatories
Based on its robust internal mechanics, high payload, and safety mechanisms, this Sky-Watcher CQ350 Pro is perfect for at-home imaging and even remote observing. Enjoy capturing outstanding images of your favorite celestial objects thanks to the smooth, belt driven system and spring loaded work gears. Also, the 77lb payload capacity and sturdy steel tripod allows a wide variety of imaging opportunities, allowing you to pack on large refractors, Newtonians, and Schmidt-Cassegrain telescopes. When it comes to remote observing, having systems in place that protect your equipment and reduce the chances of cable snags is a must. With this in mind, Sky-Watcher has fitted this mount with internal wiring, a built-in cable management system, and hard stops in both the RA and DEC axes. Also, this CQ350 is furnished with two home position sensors for auto-home functionality. Fully ASCOM compliant, easily adjoin this Sky-Watcher CQ350 to your PC and utilize your favorite third party software via the onboard USB 2.0 port. With features like these, this Sky-Watcher CQ350 Pro earns our High Point Scientific Classification Badges of Backyard Observing and Remote Observatory Grade!
