Telescope-Mounts-ZWO AM3 Harmonic Drive Equatorial Mount and Tripod

Dual Mount Style

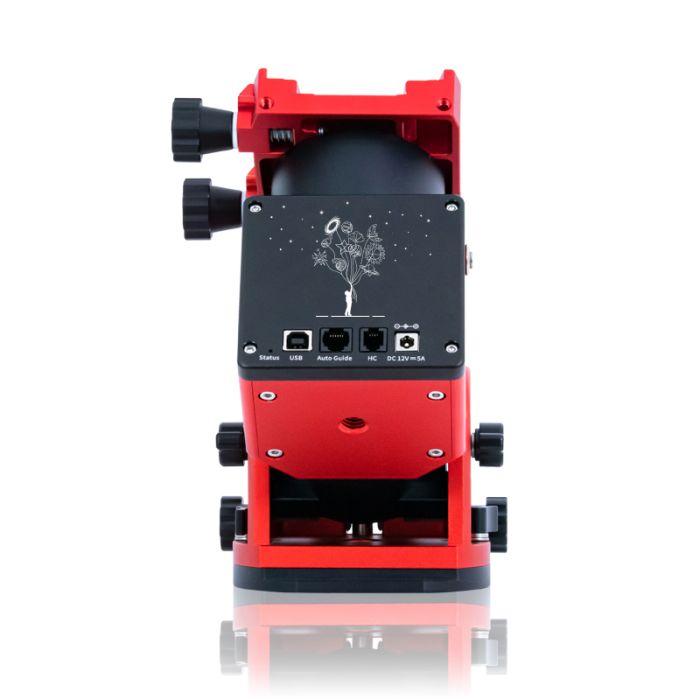

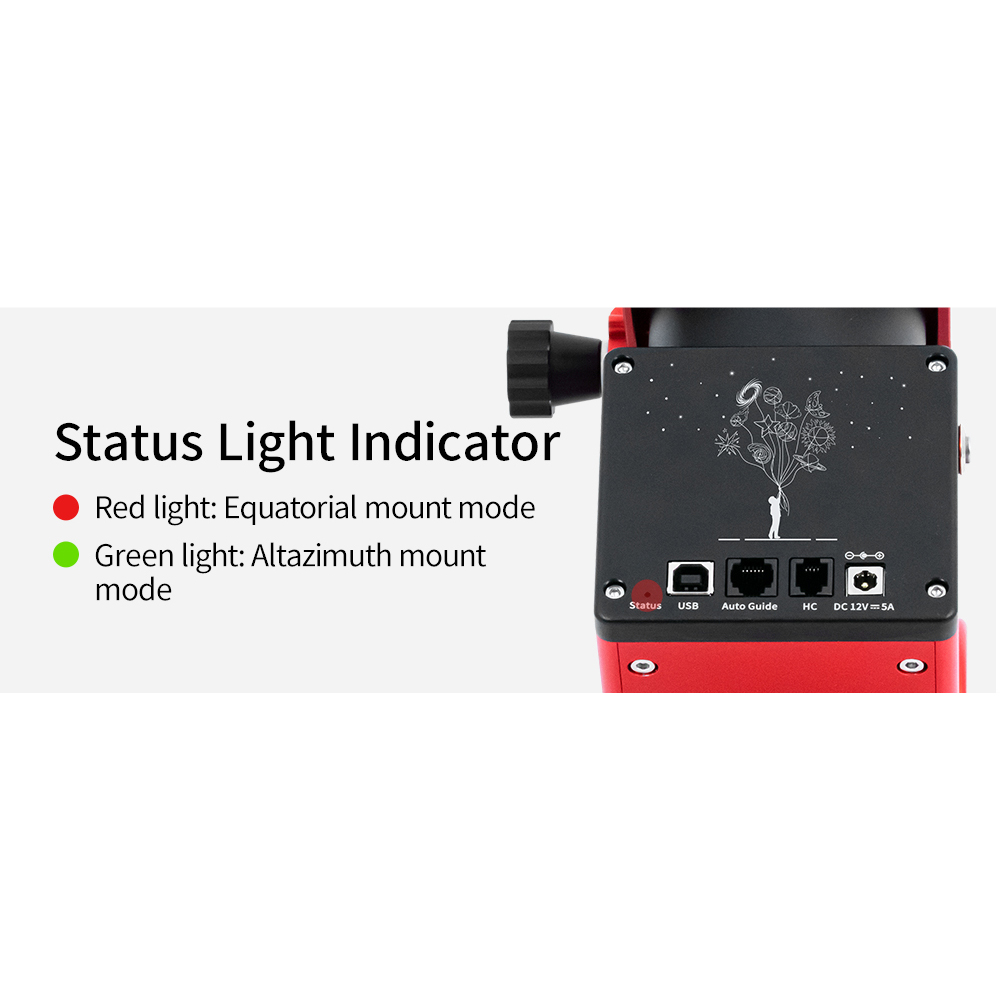

ZWO has designed the AM3 mount with the capability of switching between equatorial or alt-azimuth mount modes. You can switch the mode through the included hand controller or through the app on a smartphone/tablet. The body of the mount comes with a status light indicator that will indicate whether the mount is in an equatorial or alt-azimuth mode. The red light signals the AM3 is in EQ mode and the green light signals the mount is in Alt-azimuth mode. The equatorial mode is great for tracking and imaging celestial objects while the alt-azimuth mode works well for observations.

Two Mount Control Options

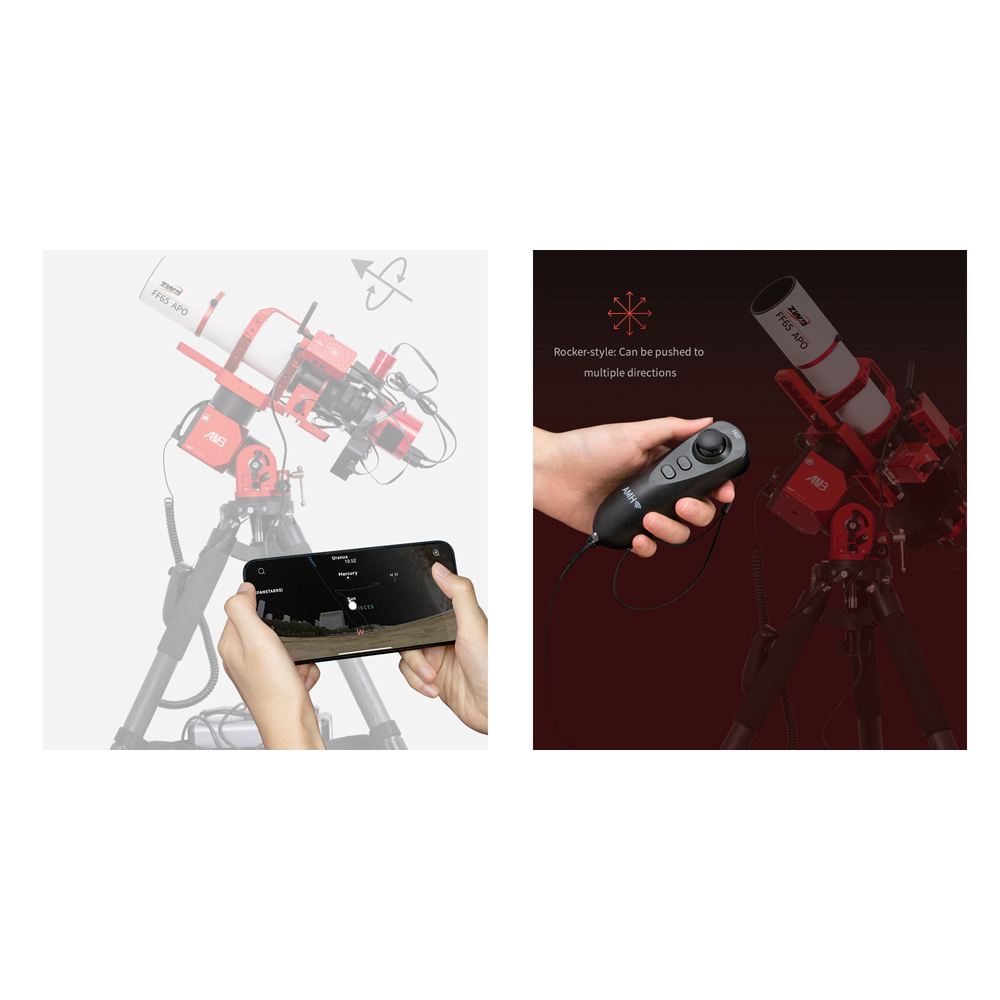

When it comes to controlling the AM3 mount, astrophotographers can use the included hand controller or use the WiFi connection and wirelessly control the mount from a smartphone or tablet. Included is a rocker-style hand controller. The size of the controller makes it easy to hold and use while the rocker-style design allows the mount to be pushed in multiple directions. For the wireless control function, users can utilize the integrated WiFi network emitted by the hand controller and use Tonight’s Target, GoTo, Live Preview, and others to pair with the ZWO AM3 mount. Please note that in order to utilize the WiFi, you must plug in the controller to emit the signal. Known iPad Compatibility – The mount is compatible with iPads running iOS 12 and up, including iPad/iPad mini, iPad Air, and iPad Pro. To use the Sky Atlas app feature, you will need a device with at least 6 GB of RAM

Harmonic Drive Speed Reducer and Synchronous Belt

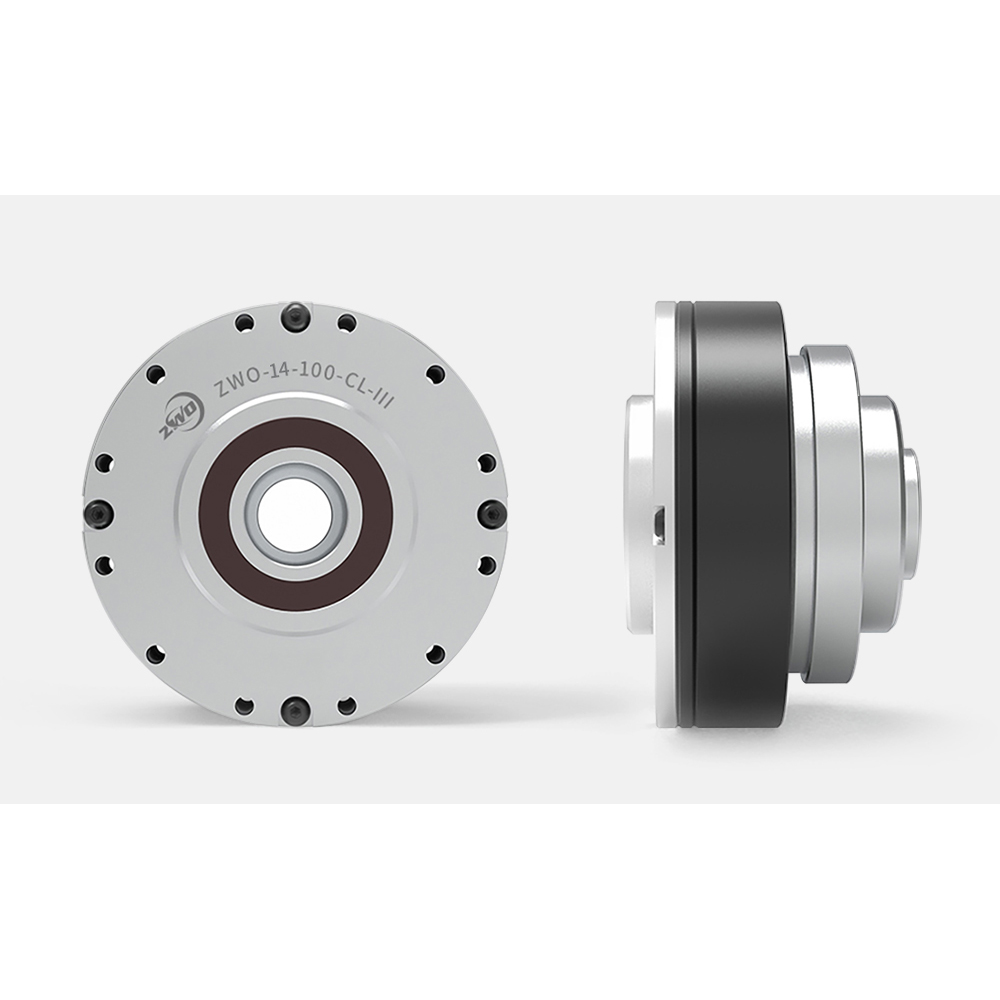

The incorporated Harmonic drive speed reducer and synchronous belt allow this mount head to have precision control. While a traditional equatorial mount requires counterweights for use, this ZWO mount’s harmonic drive speed reducer and synchronous belt eliminate the need for counterweights, though they can be added if desired (an M12 thread interface is available for compatible, user-supplied counterweight shafts). Having this design allows for more accurate control and a reduction ratio of 300:1. If counterweights are added, then it should be secured on a counterweight shaft that is no more than 20cm in length.

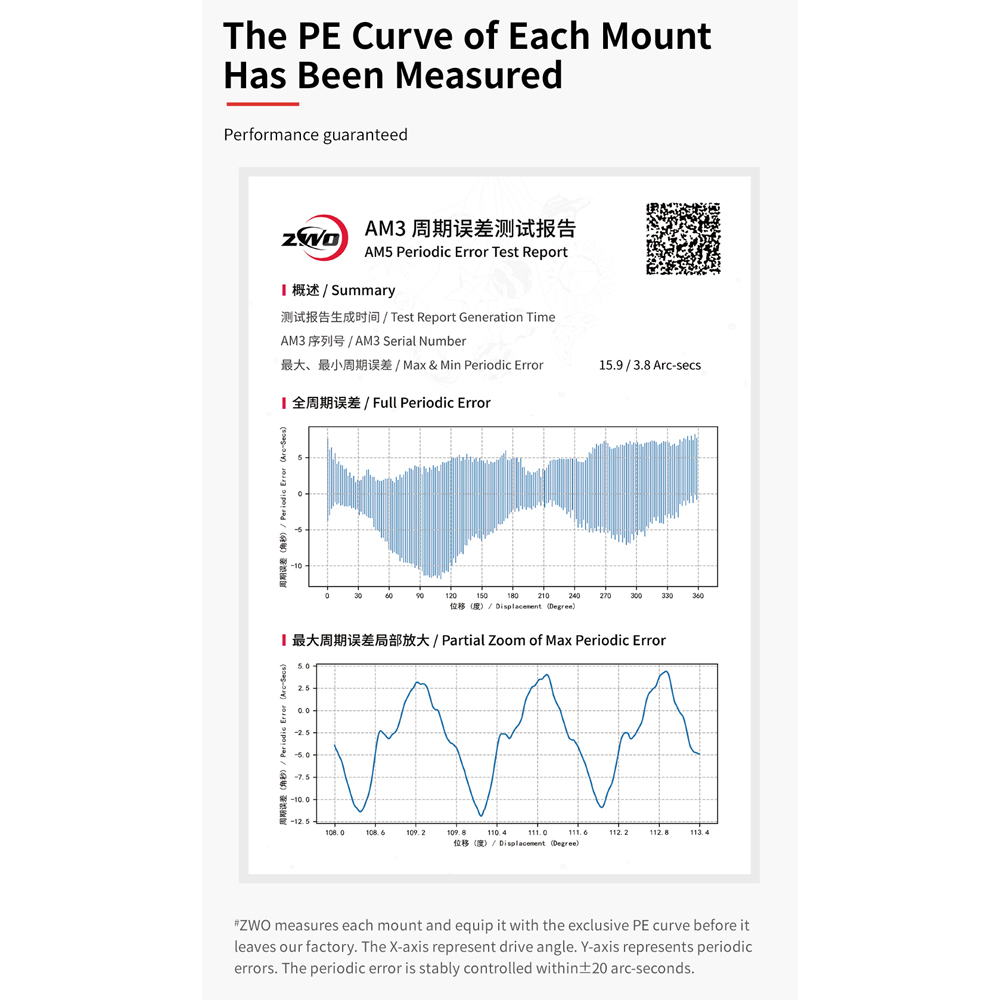

PE Curve Performance Guaranteed
The design of ZWO’s strain wave gearing system is the result of ZWO working with well-known manufacturers, and it was developed with the needs of astrophotographers in mind. Just some of the amazing features of the ZWO AM3 mount that makes it a must-have addition to astrophotography setups are the very low periodic errors, smooth gearing, and high torque. ZWO measures each mount and equips it with the exclusive PE curve before it leaves the factory to ensure performance is guaranteed!

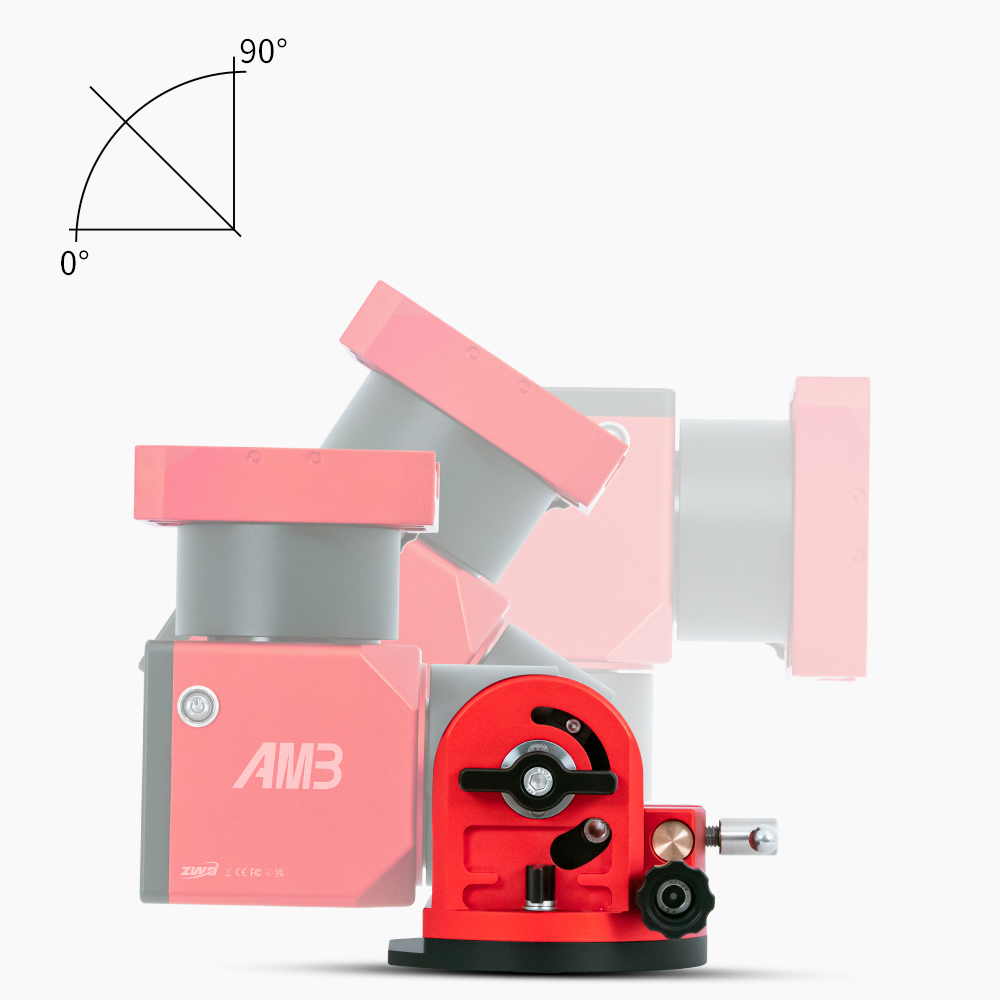

0-90° Latitude Adjustment Range
This ZWO AM3 mount comes with a latitude adjustment range of 0-90°. For the first gear, adjust the pitch angle grip to achieve between 0° to 60°. For the second gear, loosen the hex-head screw and adjust the pitch angle grip to get between 45° and 90°. Not only does this allow astrophotographers to use the AM3 in alt-azimuth mode, but it also allows those in both low and high-latitude locations to use this ZWO mount when in equatorial mode.

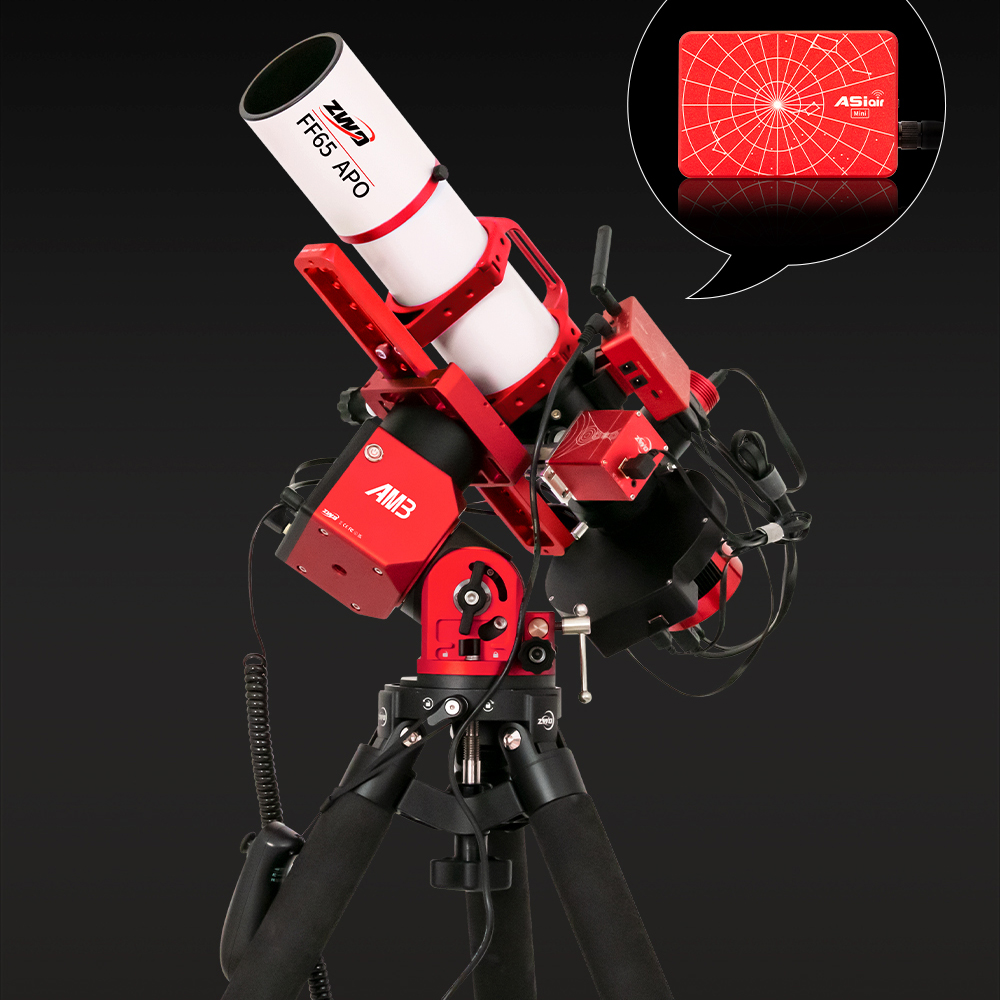

ASIAIR Plus Compatible
The ZWO ASIair Plus (not included) offers another wireless control solution for this AM3 mount. This small wireless module allows you to control the mount with your smartphone or tablet. If you’d like to add an ASIair Plus to your camera order, you can find it in the suggested accessories section or click the hyperlink above. Sporting a small physical footprint despite its larger feature set and power, this incredible accessory allows you to create a streamlined rig our of any rig but especially the sleek and compact AM3! Pair this with a powerful supply like the Apertura 12V 10A DC Power Supply – 5.5×2.1mm (sold separately) for a single driving force solution for an even more space-optimized and simple AM3 kit!

Please note that this mount is compatible with all versions of the ASIAIR!

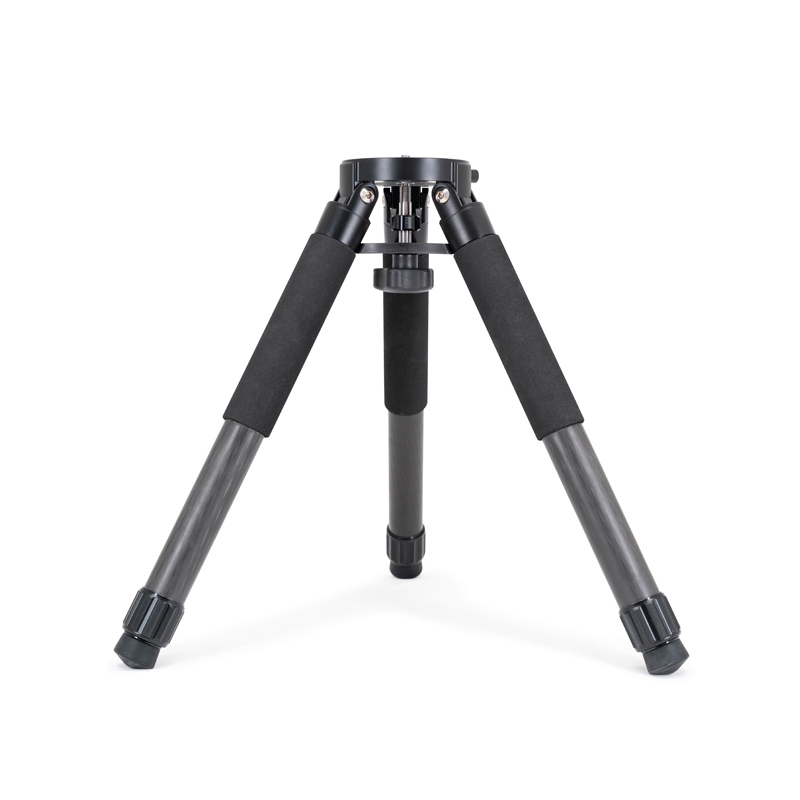

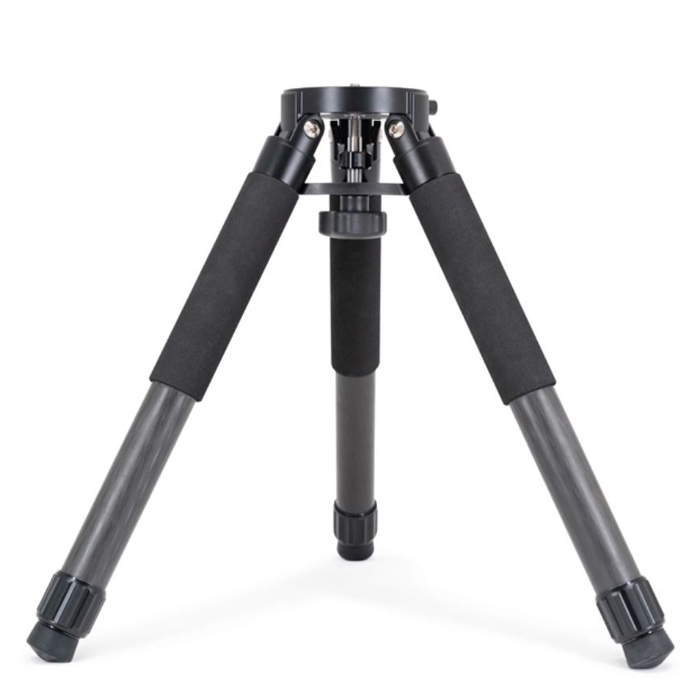

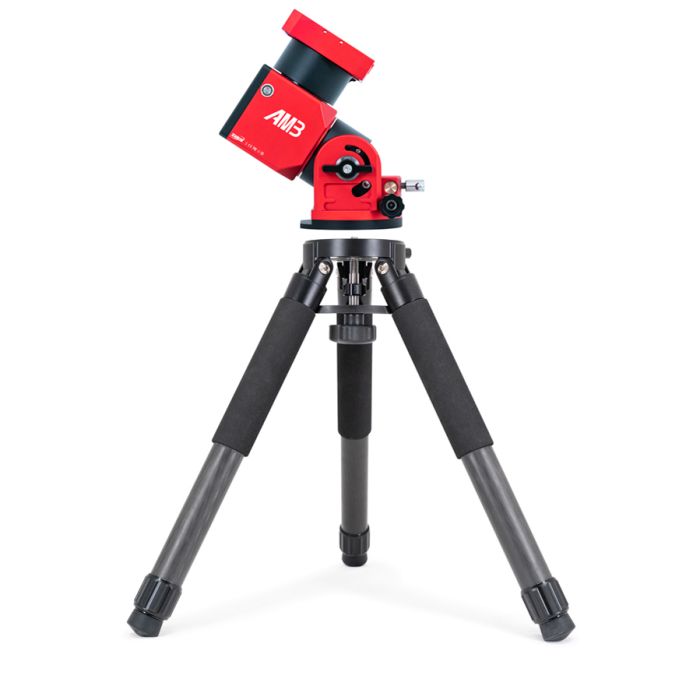

TC40 Carbon Fiber Pipe Tripod
Weighing in at 5 lb., this tripod is portable and still maintains a high load capacity of 110 lb. ZWO has machined TC40 this tripod from a carbon fiber material, increasing durability, strength, and impact resistance. The upper part of the tripod legs measures 1.5″ in diameter and the lower section measures 1.4″. The dual-section design provides better stability and rigidity when telescopes and cameras are mounted on the AM3 mount head.

Perfect for On the Go Imaging or At-Home Observing

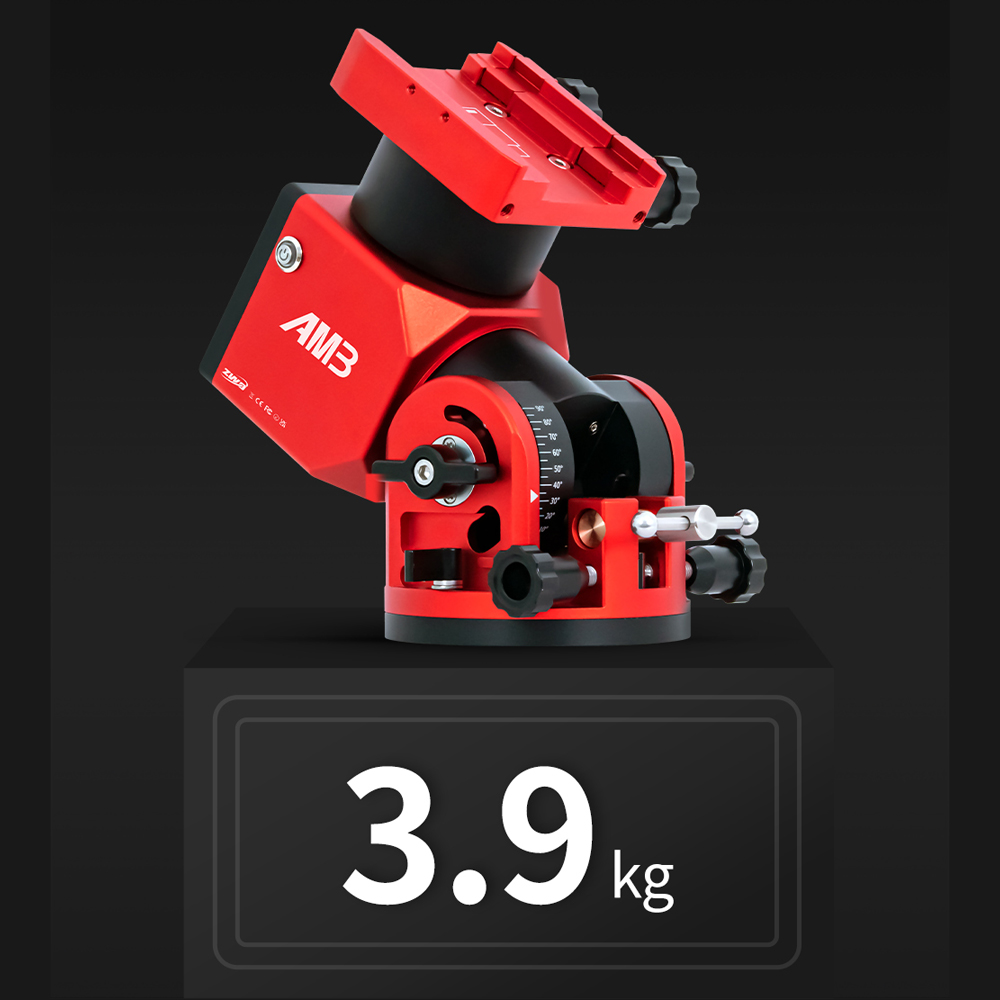

In need of a compact travel mount or a high performance mount for backyard use? This ZWO AM3 is the ideal solution! The lightweight 8.6 lb (3.9 kg) design packs away effortlessly with the included carrying case, and the TC 40 carbon fiber tripod weighs only 5 lbs itself. Also, there is no need to lug around a counterweight thanks to the strainwave gear technology. For heightened portability, operate this mount with the built-in WiFi, included hand controller, or with the ASIAIR. For at-home use, the 17.6 lb payload capacity carries a wide variety of telescopes, and the addition of a user-supplied counterweight bumps this payload up to 28.6 lbs. Also, easily adjoin this AM3 to your PC for utilization of your favorite third party ASCOM or INDI software. To give you peace of mind during remote operation, this strainwave mount is fitted with an RA power-off brake to keep your equipment safe during sudden power failures. With features like these, the ZWO AM3 Harmonic Drive Equatorial Mount earns our High Point Scientific Mount Classification Badge of New Wave Harmonic!
