Telescope-Solar Filters-Celestron EclipSmart Solar Filter for 6″ SCT

To ensure that the solar filter you buy will fit properly, please take a few moments and measure the outside diameter of your telescope, spotting scope or binoculars before you order. Remember, the solar filter needs to fit snugly around the front of the tube assembly that holds the optics. If the filter is slightly larger than its diameter, the filter can be made to fit by the addition of self-stick felt spacers to the inside of the cell. However, if the filter is too small it will not fit, and that would be a shame. So please, measure before you order. Thanks.

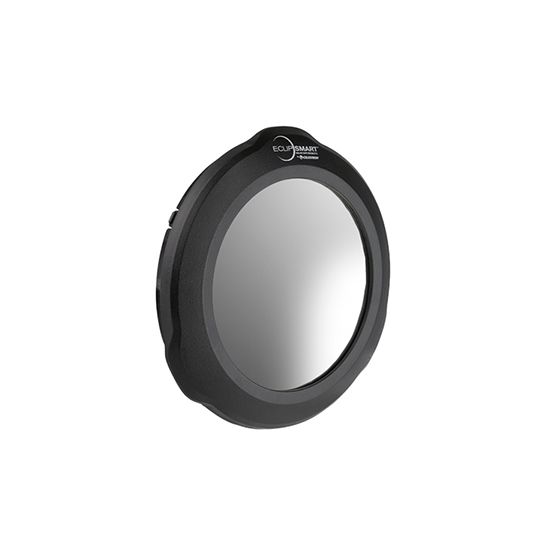

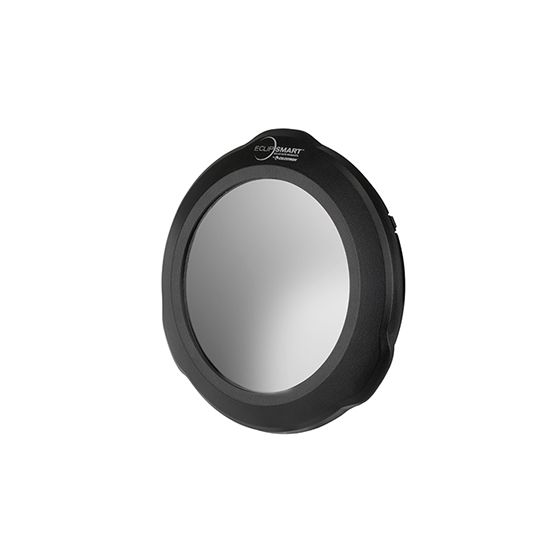

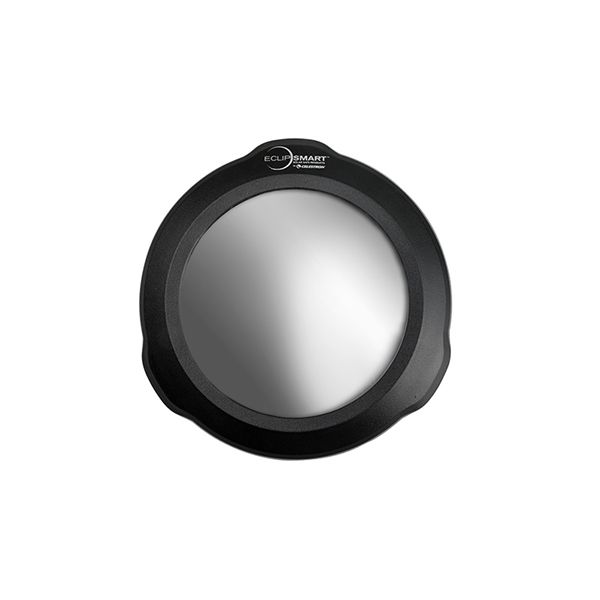

Celestron EclipSmart Solar Filter for 6″ SCT

• Instantly convert your Celestron 6″ Schmidt-Cassegrain Telescope into an instrument for white light solar viewing.

• Uses the telescope’s lens cap for a tight, comfortable fit using three safety screws. Comes with two safety Velcro straps as well as four self-adhesive Velcro pads to enable your solar filter to be securely fixed into place.

Boost your viewing experience with this Celestron 6″ SCT EclipSmart Solar Filter. Two Velcro straps and four self-adhesive Velcro pads provide additional safety, guaranteeing that the solar filter will not slip off by accident and will deliver ISO-compliant, Solar Safe observing.

Please Note: Upon receiving your EclipSmart filter, you will notice “wrinkles” or “waves” in the film. Waves and wrinkles are normal. Hard creases, however, are not normal. While EclipSmart film with hard creases is still safe, the creases may degrade the quality of the image. Do not use if there are any puncture marks, holes, or tears in the filter.

Suitable for use with the following telescopes:

• 6″ SkyProdigy Computerized Telescope – 11076

• 6″ Advanced VX Schmidt-Cassegrain Telescope – 12079

• NexStar 6SE Computerized Telescope – 11068

• 6″ NexStar Evolution – 12090

Celestron 6″ SCT EclipSmart Solar Filter Specifications

• Telescope Compatibility: Celestron 6″ Schmidt-Cassegrain Telescopes

• External Filter Diameter: 184 mm

• Internal Filter Diameter: 174 mm

• Filter Thickness: 24 mm

• Clear Aperture: 128.5 mm

• Filter Weight: 2.6 oz.

• Filter Material: Celestron proprietary Mylar film

• Two 1″ x 4″ Velcro straps and Four 1″ x 1″ Velcro tabs

Solar Safe Technology
Solar Safe filter technology is integrated into all Celestron EclipSmart solar products for supreme protection from damaging UV and IR light, and filtering 99.999% of powerful visible light. This technology, independently tested by SAI Global Assurance Services, enables the direct observation of the sun in a ensured safe manner.

What About Your Finderscope?

Adding this solar filter to your telescope will adequately filter the light coming through your focuser, but have you considered what you’ll do about your finder scope?

Here are some suggestions for dealing with your finder that will assure you do not damage your eyes (or anyone else’s) by looking at the Sun through your telescope’s unfiltered finder:

• Remove Your Finder. Ditching your finderscope when solar viewing will remove the possibility of someone accidentally looking through it to spot the Sun. Of course, not having a finder makes centering the Sun in your eyepiece more difficult, but with practice, it can be done. Set the mount down so the telescope is pointing in the direction of the Sun. Put the main solar filter on so you can check your progress, and then move the telescope around until it casts a shadow that produces a nice, sharp silhouette of the scope. The OTA will look circular. Now move your telescope up or down with your hand controller, slow motion controls, or very carefully by hand if required while looking through the eyepiece. You will not get a warning when you are close, but you should be able to align with the Sun using this method. Practice ahead of time before any big event, like an eclipse, to make sure you’ve got the process down.

• Filter Your Optical Finder. This solution is not recommended for a reflex or red dot finder since it is too easy to accidentally look around the window. If you have one of these finders we recommend you either remove it or replace it with a dedicated solar finder (see below).
  To make your optical finderscope safe for solar viewing you’ll need to buy a piece of Baader Solar Film for Visual Use. This film comes in different size sheets and cuts easily with scissors, allowing you to make your own filter. You can go super low-tech and use a rubber band to hold a piece of the film firmly around the finder or you can get fancy and build your own slip-on solar filter. However you attach the solar film, you need to make sure there are no light leaks at all and that it doesn’t accidentally fall off when you move your telescope around. Any unused film can store flat between two pieces of cardboard and will keep for years. It is nice to have around, just in case of a solar emergency 🙂

• Buy a Dedicated Solar Finder. Check out the Tele Vue Sol-Searcher Solar Finder. This special finder can only be used when observing the Sun, but it works very well. The Sol-Searcher is reasonably priced and can be attached to your telescope with Velcro or with #10-32 screws (user supplied).
